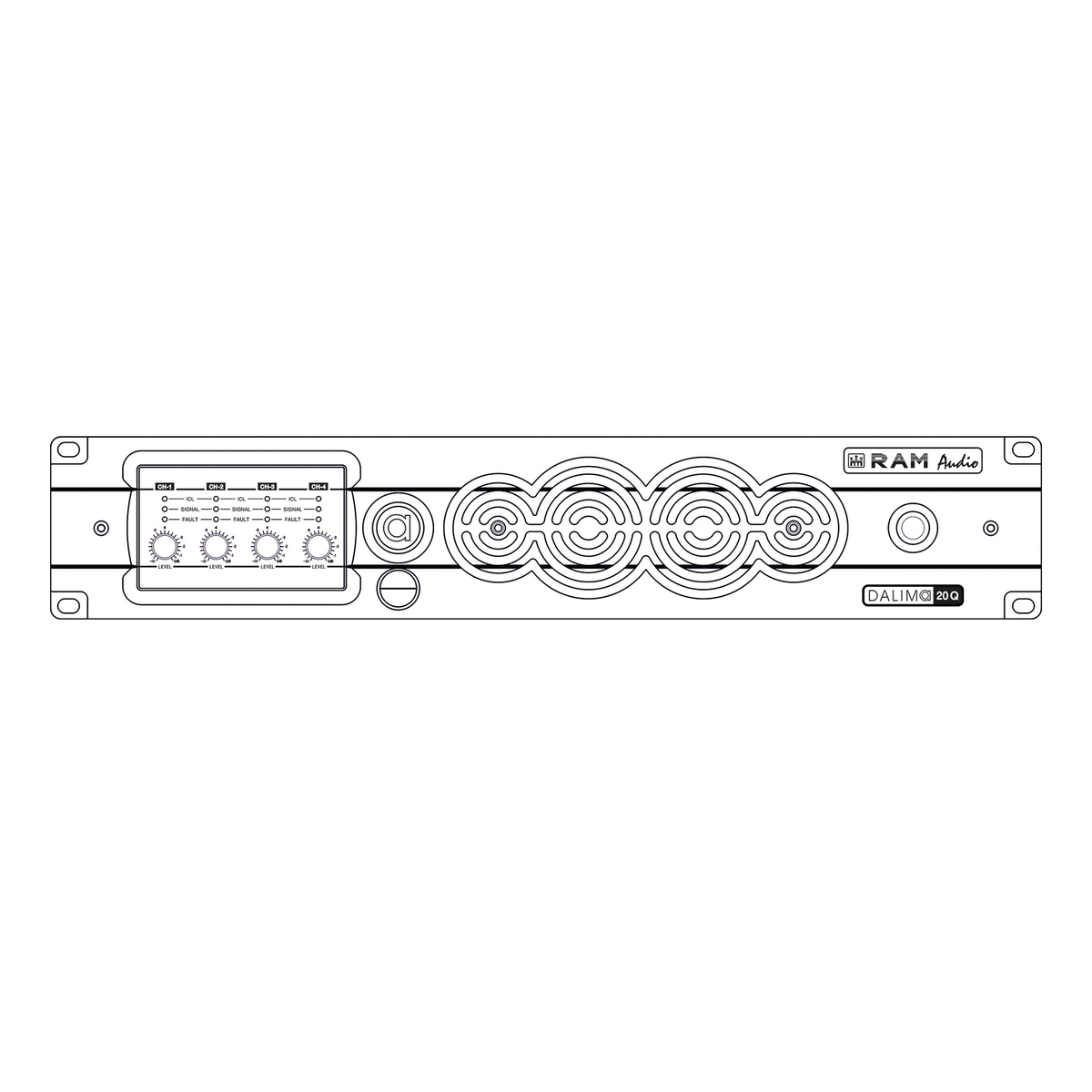

DALIMa 20Q DANTE

DALIMa 20Q 4 channel amplifier + DANTE

Item no.: RAMDALIMA20QD

Guarantee: 60 months

EAN: 4049521951527

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:DALIM

Versions:

Questions about the item?

Item highlights:

DALIMa Series are 4-channels high power level amplifiers designed to the tough requirements of the touring market. It is remarkable their high efficiency.

These amplifiers are based on their predecessors DALIM amps, where DSP has been removed; for these applications where external DSPs are used, so you do not have to pay extra money for it.

In the design it has been implemented the advanced RAM Audio Power Control Management to configure through the DSP how to sharing the power between the channels according to the user needs, having the possibility to obtain in just one channel the maximum power.

Optional GPIO and DANTE inputs are available for DALIMa amplifiers.

Specifications

Channels

4

Total output power

20000 W

Rated ouput power @ 2 Ohms (all channels driven)

4 x 5000 W

Rated ouput power @ 2 Ohms (single channel)

1 x 5000 W

Rated ouput power @ 2.67 Ohms (all channels driven)

4 x 5000 W

Rated ouput power @ 2.67 Ohms (single channel)

1 x 6700 W

Rated ouput power @ 4 Ohms (all channels driven)

4 x 5000 W

Rated ouput power @ 4 Ohms (single channel)

1 x 6000 W

Rated ouput power @ 8 Ohms (all channels driven)

4 x 2500 W

Rated ouput power @ 8 Ohms (single channel)

1 x 3000 W

Rated ouput power (8 Ohms, bridged)

2 x 10000 W

High Z 70Vrms / 100Vpeak

1 x 5000 W, 4 x 5000 W

High Z 100Vrms / 140Vpeak

1 x 3500 W, 4 x 3500 W

Max output voltage

235 Vpeak

Max. output current

71 Apeak

Total Harmonic Distortion (THD)

< 0.05 %

Crosstalk (20Hz - 1kHz)

> 70 dB

Voltage gain

26 dB to 44 dB

SNR

115 dBA

Operating voltage

90 V AC - 265 V AC, 50 - 60 Hz

1/8 rated power (@230V/4 ohm)

14 A / 3268 W

1/8 rated power (@120V/4 ohm)

26.8 A / 3268 W

Idle

1 A / 112 W

Thermal dissipation

2620 BTU / h

Protection circuits

DC, on/off transients, ICL™, Short circuit, Open or mismatched loads, PCM ™, RF, soft start, mute when turning on, thermal overload, power supply overload

Width

483 mm

Height

89 mm

Depth

355 mm

Weight

9 kg
