CURV 500 TS

CURV 500 TS

Compact Touring Array System

Item no.: LDCURV500TS

Guarantee: 24 months

EAN: 4049521228353

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:CURV 500

Versions:

Item highlights:

  • Portable touring array system for live events, DJs and bands
  • 25 premium transducers and WaveAhead® technology for breath-taking high-definition sound
  • 1,000 watts RMS system power and 131 dB max. SPL
  • Fully scalable for far and near field applications
  • SmartLink® plug & play adapter for versatile application
  • Durable aluminum unibody satellite construction
  • 18 mm birch ply subwoofer cabinet with Polyurea finish
  • Ergonomic handles for convenient transport and setup

Specifications

Product type
PA Complete Systems
System output (RMS)
1000 W
Color
Black
Number of array satellites
4
Number of Smartlink adapters
1
Number of subwoofers
1
Max. SPL (continuous)
125 dB
Max. SPL (Peak)
131 dB
Frequency response
40 - 20000
Dispersion (H x V)
110° horizontal, vertical 34 °
RMS
Subwoofer: 700 W , Array Satellites: 300 W
Peak power
Subwoofer: 1400 W , Array Satellites: 600 W
Amplifier
Class D
Protection circuits
Short circuit, overload, DSP-based multiband limiter, thermal overload
Weight
48,2 kg
Accessories (included)
Power cord, Distance bar, Speaker cable CURV 500 CABLE 1 (2.2 m)
Low/mid driver dimensions
15 "
Low/mid driver dimensions (mm)
381 mm
Cabinet construction
Bass Reflex
Housing material
plywood
Cabinet surface
Polyurea
Dimensions Subwoofer (W x H x D)
600 x 437 x587 mm
Subwoofer weight
35.5 kg
Subwoofer features
Powercon, 6 System DSP Presets, Threaded flange M20, 4 ergonomic handels, speakON output

Items in this set

Product type
PA Complete Systems Accessories
Type
Array Satellites
Midrange dimensions
1 x 4 "
Tweeter dimensions
3 x 1 "
Load rating (RMS)
40 W
Peak power
80 W
Speakers per amplifier channel (DSP44/45K)
8x1, 4x2, 2x3, 2x4, 5, 6 (LOW Z)
Dispersion
110° horizontal, vertical (each satellite) 10 °
Impedance
16 Ohm(s)
SPL (1W/1m)
88 dB
Max. SPL
104 dB
Material
Die-cast aluminium
Surface
Powder coated
Color
Black
Width
122 mm
Height
122 mm
Depth
122 mm
Weight (pair)
3.44 kg
Features
WaveAhead® Technology, metal grille, M3 thread for safety rope for installations, internal crossover, SmartLink® System
Product type
Installation Loudspeakers
Type
Wall-mounted Loudspeaker, Array Satellites
Midrange dimensions
2 x 4 "
Tweeter dimensions
6 x 1 "
Load rating (RMS)
80 W
Peak power
160 W
Dispersion
110° horizontal, vertical 7 °
Impedance
8 Ohm(s)
SPL (1W/1m)
91 dB
Max. SPL
110 dB
Material
Die-cast aluminium
Surface
Powder coated
Color
Black
Width
122 mm
Height
240 mm
Depth
126 mm
Weight
3,3 kg
Product type
PA Complete Systems Accessories
Type
Smartlink® Adapter
Material
Die-cast aluminium
Surface
Powder coated
Connectors
1x Speakon compatible, 1x Phoenix
Color
Black
Width
122 mm
Height
57 mm
Depth
57 mm
Weight
0,35 kg
Features
2 x 16 mm flanges, 2x M6 thread for optional wall mount

Description

CURV 500 TS

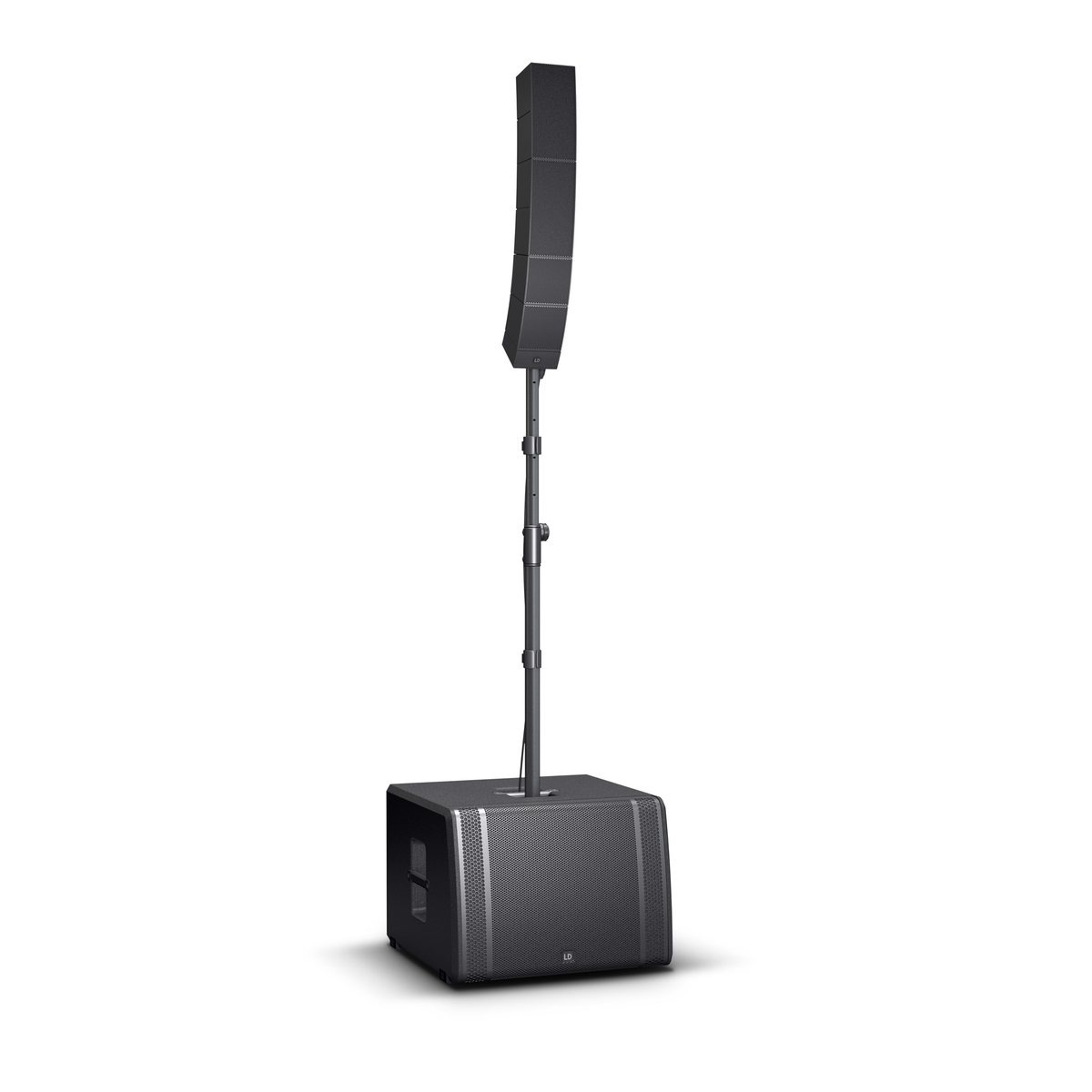

The compact, highly portable CURV 500® Touring Array System is fully scalable with up to four interlocking aluminium unibody line array elements operating on a SmartLink® plug and play adapter. It comes with two standard CURV satellites that feature a single 4" midrange and triple 1" high frequency drivers using LD Systems' WaveAhead® technology, and two duplex satellites with twice the speaker complement.

The ported 15" subwoofer base includes the CURV 500® Touring Array System's class D amplification with multiband limiter, short circuit, thermal and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight CURV 500® Touring Set delivers high definition audio with powerful punch, superb balance and extended vertical and horizontal coverage. The set includes a subwoofer pole and dedicated speaker cable.

Videos for this item

Accessories

Spare parts

LDCURV500TSSUBGR
Grille for LDCURV500TS Subwoofer
Loading...
LDCURV500TSSATXOVER
Crossover PCB for LDCURV500TS Satellite
Loading...
CURV 500 S2
LDCURV500S2
Two Array satellites for the CURV 500® Portable Array System, black
Loading...
LDCURV500ADAPGR
Grille for CURV500 Adapter, Black
Loading...
LDCURV500TSREARFEET
Rear Feet (4PCS) for LDCURV500TS Subwoofer
Loading...
LDCURV500TSSUB
Subwoofer- Complete
Loading...
LDCURV500TSHANDLE
Handle for LDCURV500TS Subwoofer
Loading...
LDCURV500TSSATGR
Grille for LDCURV500TS Satellite
Loading...
LDCURV500TSSUBLS
15" Speaker for LDCURV500TS Subwoofer
Loading...
LDCURV500TSDISHM20
Handle Dish. Incl. M20 Thread for LDCURV500TS
Loading...
LDCURV500TSBOTFEET
Bottom Feet (4PCS) For LDCURV500TS Subwoofer
Loading...
CURV 500 TB
LDCURV500TB
Terminal Block for CURV 500
Loading...
CURV 500 D SAT
LDCURV500DSAT
Duplex Satellite Black
Loading...
