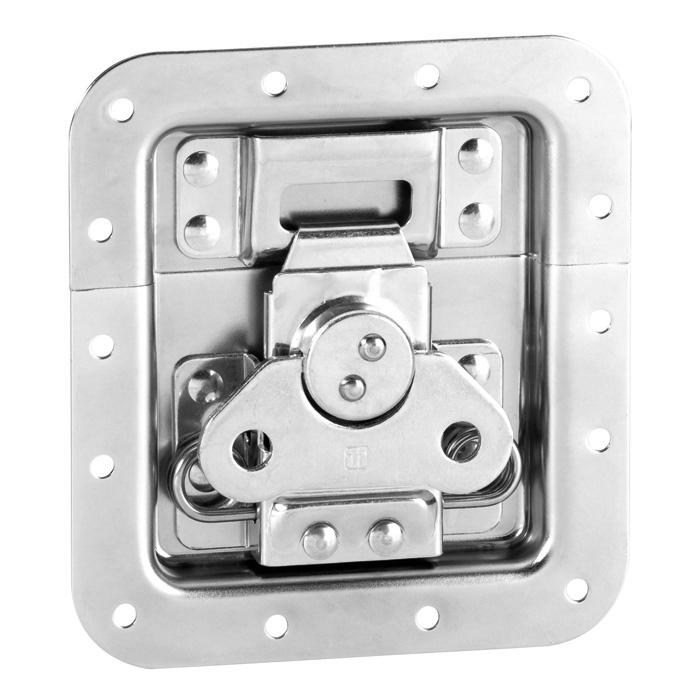

Butterfly Latch V3 short non cranked 14 mm deep

Item no.: 172530

Guarantee: 24 months

EAN: 4049521004049

Sliding scale: 1

Unit: Piece

Packaging unit: 40

Series:V3

Item highlights:

The same Large Butterfly "V3" with "push-down" function as in the 172501 but in a shorter dish. The entire mechanism is identical thereby having the same strength and loading capabilities. The dish is shorter giving a chunky look and easier use in smaller cases and flatter lids.

Our V3, V4 and V5 Butterflies have a patented ´push-down` mechanism that lifts the hook out of the keeper plate on opening and leads it back into the dish on closing. This offers an ideal handling and minimises risk of injury and damage.

Specifications

Material
Steel
Coating
Galvanised
Lockable
Yes
Push-out spring
No
Push Flat feature
Yes
Colour
Silver
Cranking
Non-cranked
Size
S
Diameter of mounting holes
5.1 mm
Width
127 mm
Height
138.5 mm
Depth
22.1 mm
Installation width
98.2 mm
Installation height
110.7 mm
Installation depth
14 mm
Weight
421 g
