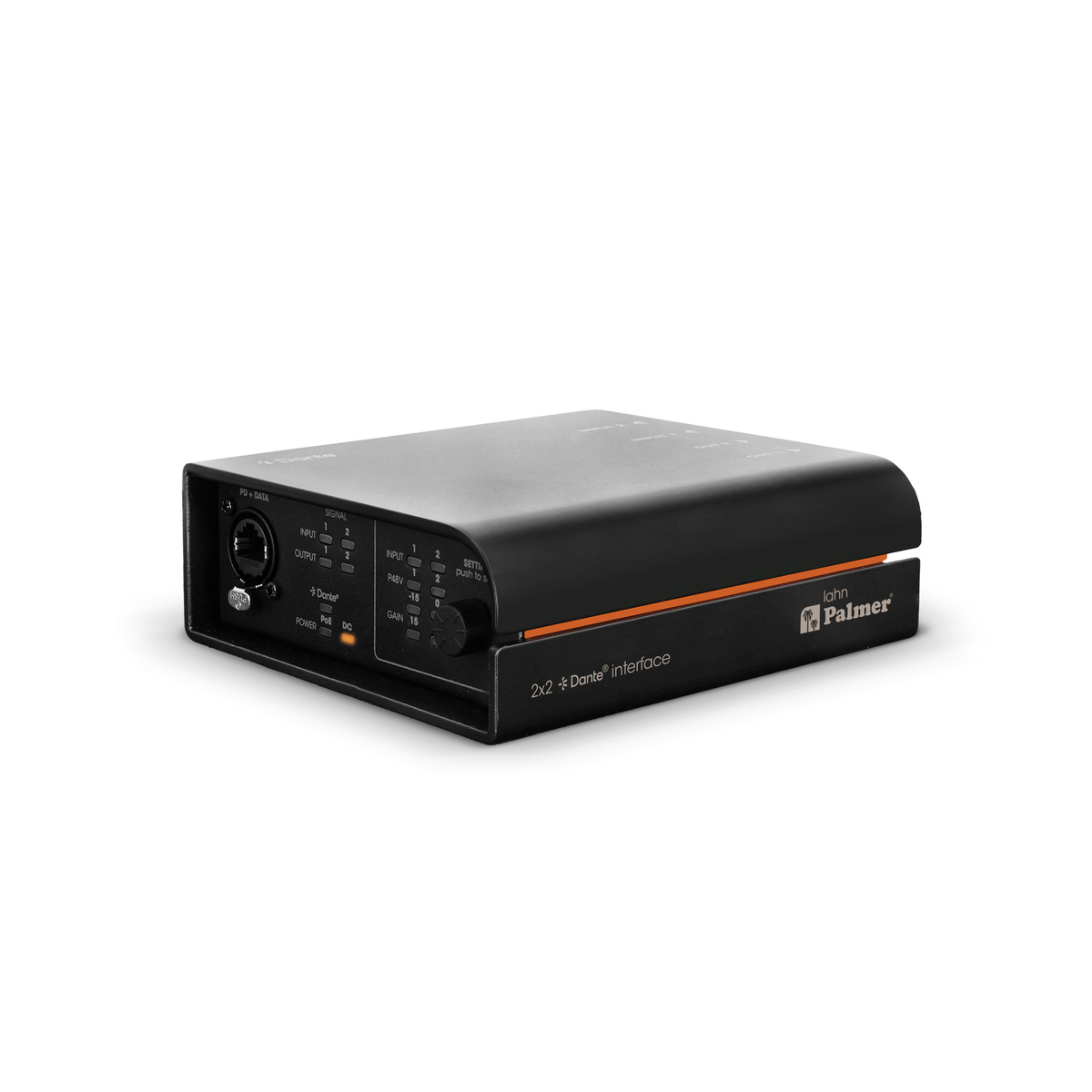

RIVER lahn
NEW

RIVER lahn

2x2 Dante® interface

Item no.: PLAHN

Guarantee: 60 months

EAN: 4049521947506

Sliding scale: 1

Unit: Piece

Packaging unit: 8

Series:River

Item highlights:

  • Dante® interface with two inputs and two outputs
  • Feeding two analogue microphone or line signals into Dante® networks
  • Conversion of Dante® signals for mixers, amplifiers, loudspeakers, etc.
  • Four-stage gain control and 48 V phantom power per channel
  • Lockable XLR audio connections and etherCON® network socket from Neutrik®
  • Simple configuration on the front and user lock
  • Signal display for each channel
  • Compatible with Dante® Domain Manager and AES 67
  • Solid aluminium and steel housing
  • Engineered in Germany

Specifications

Product type
2 x 2 I/O Dante Interface
Inputs
2
Input type
Switchable Balanced mic or line level
Line outputs
2
Output type
Balanced line level with auto mute relay on loss of Dante/AES67 signal
Cooling
Convection
Number of input connectors
2
Connector
XLR-F
Mic input sensitivity
63 mV (gain +30 dB)
Nominal input clipping
19 dBu (Sine 1kHz, Gain -15 dB)
Frequency response
10 Hz - 20 kHz (-0.5 dB)
THD + Noise
< 0.003 % (gain -15 dB, input 4 dBu, 20 kHz BW)
Input Impedance
38 kohm (balanced)
Crosstalk
< -100 dB (input 18 dBu, 20 kHz BW)
SNR
> 112 dB (gain -15 dB, input 20 dBu, 20 kHz BW, a-weighted)
CMRR
> 45 dB
Phantom Power (per input)
+ 48 VDC @ 10 mA max
Gain
-15dB, 0dB, +15dB, +30dB
Number of output connectors
2
Connection type
XLR male
Max. output level
19 dBu
Intermodulation Distortion (SMPTE)
< 0.005 % (-20 dBFS to 0 dBFS)
THD + N
< 0.002% (-4 dBFS, 20 kHz BW)
Idle Noise
< - 85 dBu
Dynamic Range
> 103 dB (0 dBFS, AES 17, CCIR-2k weighting)
Frequency range
15 Hz - 20 kHz (-0,5 dB)
Audio Channels
2 inputs / 2 outputs
Bit depth AD/DA converter
24/32 bit
Sampling frequency
48 kHz
System Latency:
Minimum 1 ms
Connector DANTE
100 BASE-T RJ45
Minimum PoE Requirements
PoE+ IEEE 802.3at
Input voltage
24 V DC
Minimum Current
500 mA
Power connector
5.5 mm Barrel Jack, inner 2.1 mm
Max. Power consumption
12 W
Idle power consumption
7.5 W (no signal input)
Mains Inrush Current
2 A @ 230 V AC
Operating temperature ( non-condensing )
0°C - 40°C; < 85% humidity, non condensing
Material
Steel front panel, Aluminum chassis
WAF
60%
Dimensions (W x H x D) ( height with rubber feet )
128 x 50 x 140 mm
Weight
0,96 kg
Accessories (included)
Inscription label (tour label), External power supply with interchangeable plugs

Description

RIVER lahn

With the Palmer RIVER lahn you can integrate analogue audio devices into a Dante® network: the lahn is an end-of-network interface that can be used to feed two analogue microphone or line signals into a Dante® network. Thanks to the bidirectional functionality, Dante® signals can also be converted into high-quality analogue audio signals to feed them into mixers, amplifiers, or loudspeakers.

With four-stage gain control and 48 V phantom power per channel, the RIVER lahn offers precise control and flexibility for various application scenarios. The lockable XLR audio connectors and the Neutrik® etherCON® network socket ensure secure connections, while the simple configuration on the front and the user lock on the control panel ensure user-friendly handling.

Each channel is equipped with a signal display that shows you the status of your audio transmission at all times. In addition to the power supply unit included in the packaging content, PoE (Power over Ethernet) can also be used for the power supply, which offers additional flexibility with regard to installation. Developed in Germany, the RIVER lahn is compatible with Dante® Domain Manager and AES 67. The solid aluminium and steel housing guarantees durability and robustness, making it ideal for use in demanding environments.

Experience the seamless integration of analogue and digital audio technology with the Palmer® RIVER lahn and benefit from first-class audio quality and ease of use.
