Item no.: PMT04
Guarantee: 60 months
EAN: 4049521049446
Sliding scale: 5
Unit: Piece
Packaging unit: 1

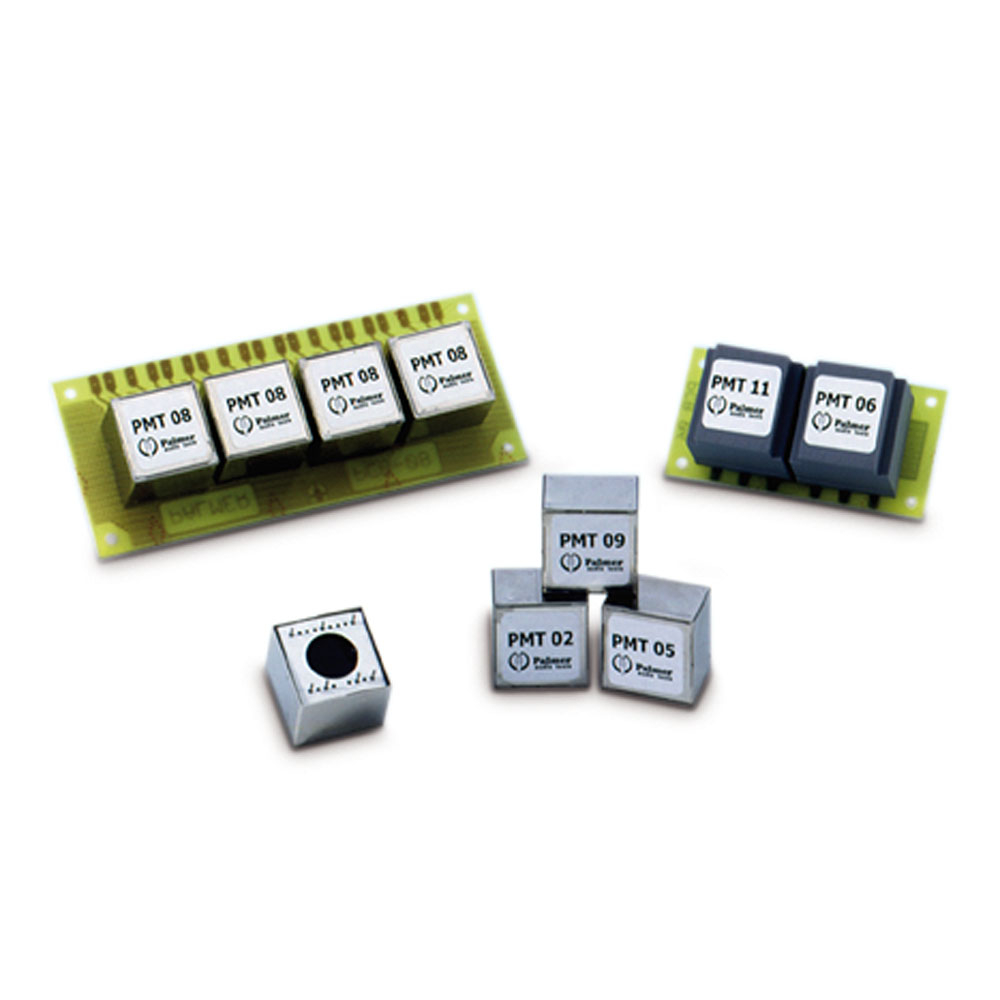

Series:Palmer Transformers
Item highlights:
Microphone transformer with a 1:1 ratio to balance unbalanced inputs, also useful for isolating ground. Primary winding with center tap to feed in phantom power. Electrostatic and mu-metal shielding, PCB mount. Technical specifications: Ratio 1 : 1 Impedance: 200 ohms : 200 ohms Frequency range: 40 Hz - 20 kHz, +/- 0,5 dB Level: + 4 dB max. Dimensions: (without pins): 30 x 30 x 20 mm
Specifications
Product type
Audio Transformers
Ratio
1:1
Source impedance
200 Ohm(s)
Load impedance
> 200 Ohm(s)
Max. level
+ 4 dB
Frequency response
40 - 20000
PCB
n.a.
Dimensions
EE25 mm
application
mic balancing
Weight
0,08 kg
