A new model exists for this item:
Neutrik
NL4MPXX
NL4MPXXSB
Item no.: NL4MPSB
Guarantee: 12 months
EAN: 7613187011368
Sliding scale: 1
Unit: Piece
Packaging unit: 500
Item highlights:
- Current rating 30 A rms
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimized for speaker applications
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Specifications
Product type
Plugs and Connectors
Type
Loudspeaker Connectors
Poles
4
Gender
male
Contacts
Bronze
Connection type
Flat tabs
Housing
polyamide
Width
26 mm
Height
31 mm
Depth
35 mm
Weight
0,012 kg
Additional information
in D-type housing
Description

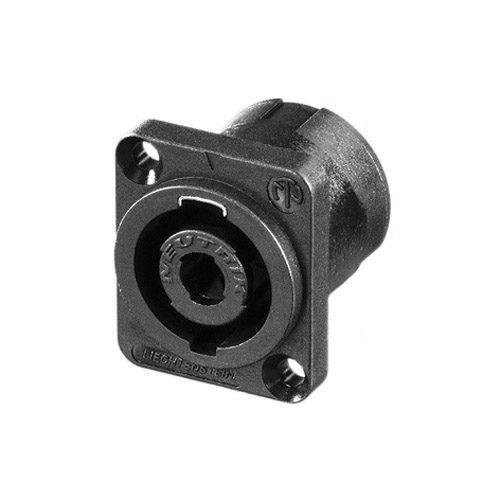

NL4MPXX
4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Downloads
Download Centre
In our central download centre, you will find all downloads related to brands, products, and other service topics.
