Item no.: K8C10
Guarantee: 24 months
EAN: 4049521032851
Sliding scale: 1
Unit: Piece
Packaging unit: 4
Series:3 Star
Versions:
Item highlights:
- Multicore Stagebox from our 3 STAR SERIES
- With 8 send channels
- High-quality, numbered XLR connectors from Adam Hall®
- Splice length of 60 cm
- 10 m PVC cable with a diameter of 13 mm
Specifications
Product type
Pre-assembled Cables
Type
Multicore cable
Channels
8
Cable Length
10 m
Color
Black
Cable diameter
13 mm
Cross section
0.14 mm²
Connector 1 (built into drum / stage box)
XLR
Number of connectors connector 1
8
Gender of connector 1
female
Poles of connector 1
3
Connector 2 (splice)
XLR
Number of connectors connector 2
8
Gender of connector 2
male
Poles of connector 2
3
Model number connector 2
Custom-made
Splice length
60 cm
Width
100 mm
Height
90 mm
Depth
325 mm
Description

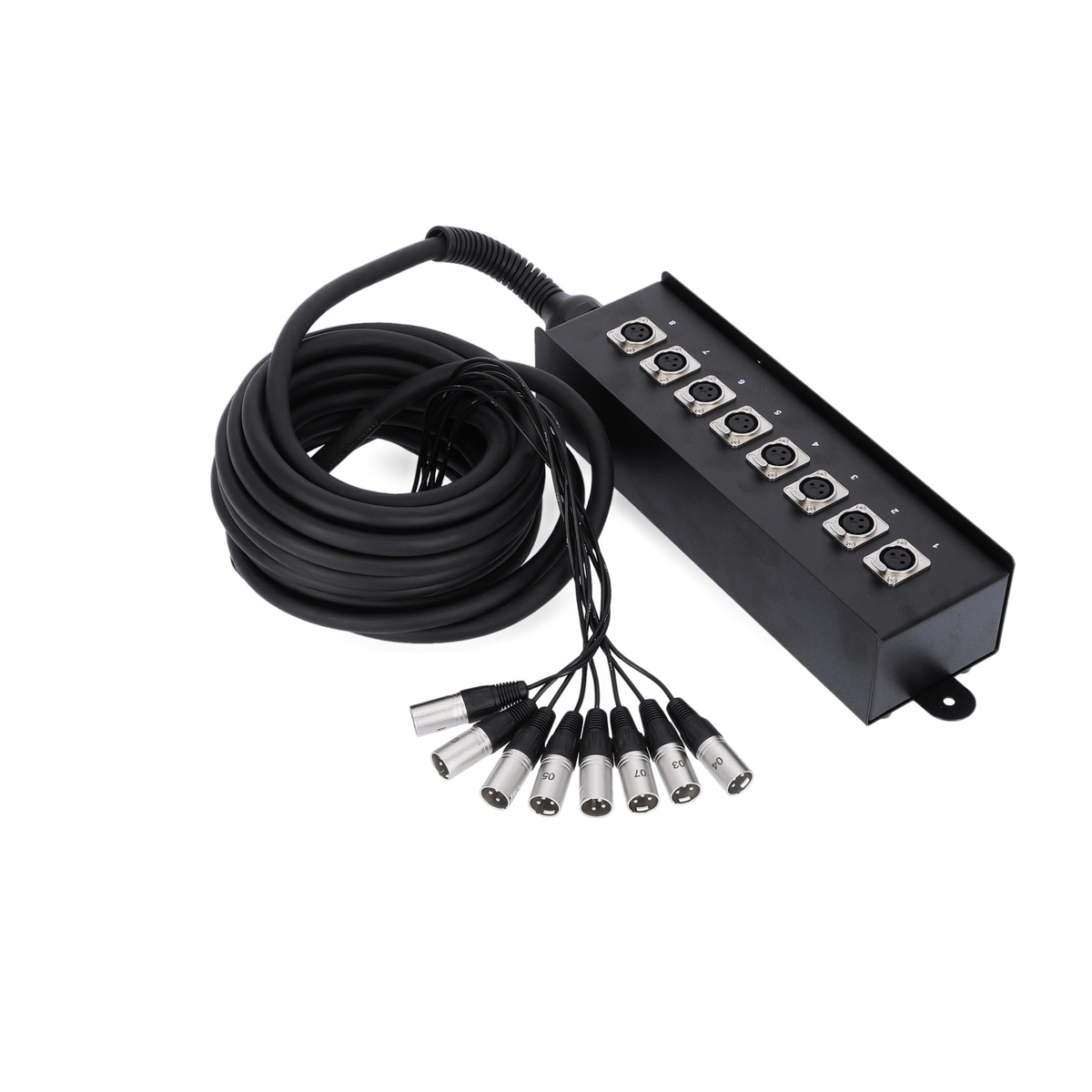

3 STAR MULTICORE 8 CHANNEL 10 M
Eight-channel subcore with permanently attached ten-metre cable terminating in eight Adam Hall XLR plugs. The metal stage box has a mounting lug on the side; solid strain relief protects the sensitive transtion zone between box and cable. The additionally reinforced transition to the terminations prevents fatigue and cable breakage.
