Item no.: 70230
Guarantee: 24 months
EAN: 4049521013386
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:3 Star
Versions:
Item highlights:

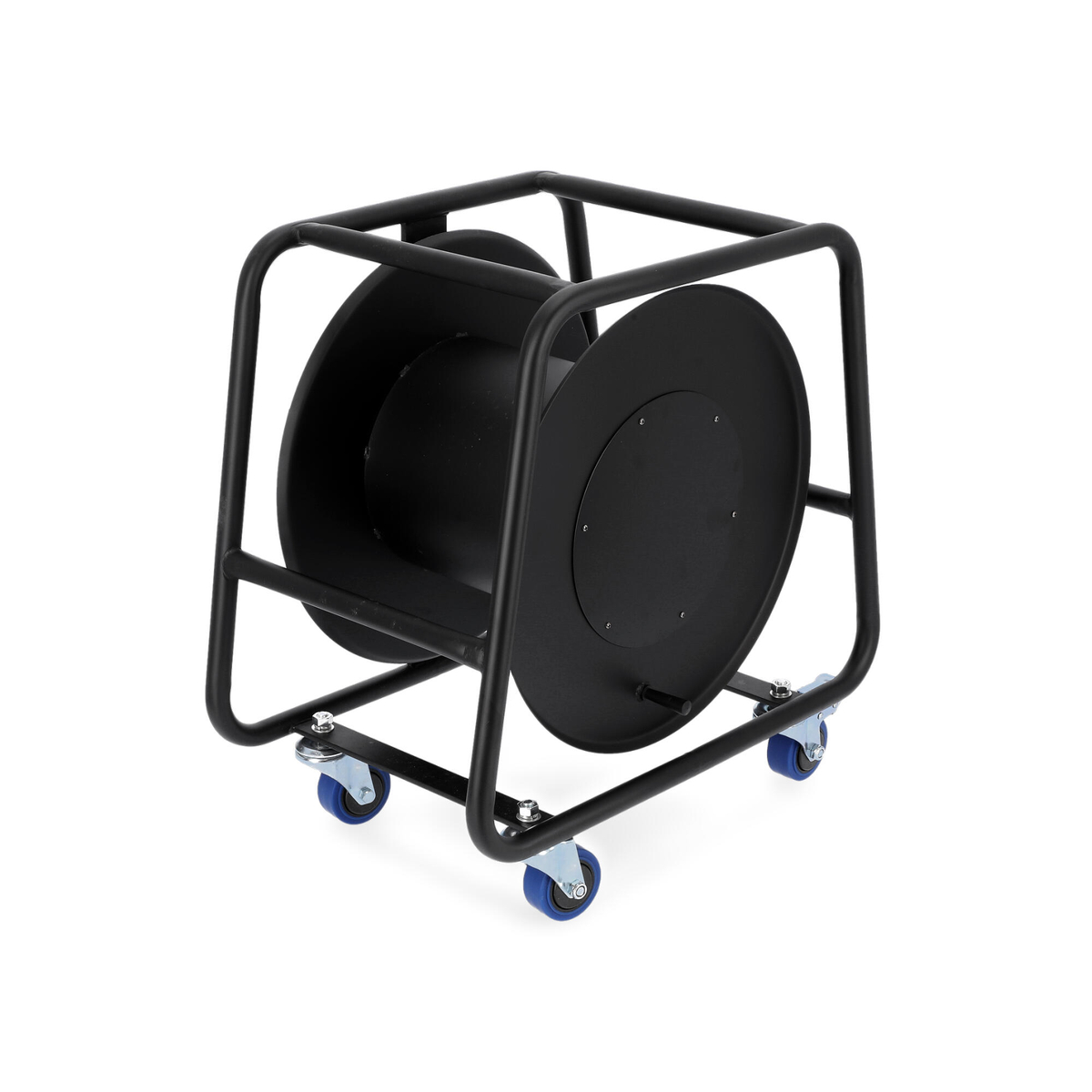

Cable drum similar to K28C30D for min. 30m 28pair multicore. Incl. blind panel and punched 24/8 round panel an 80mm castors.
Specifications
Coating
Powder coated
Material
Steel
Material
Steel
Coating
Powder coated
Colour
Black
Width
290 mm
Diameter
450 mm
Core diameter
250 mm
Width
650 mm
Height
450 mm
Depth
660 mm
Weight
15.7 kg
Spare parts
70230BREAKROLL
Reel with Brake for 70230 Cable Drum
Loading...
70230ROLL
Reel without Brake for 70230 Cable Drum
Loading...
70230FRAME
Panel with Holes for 70230 Cable Drum
Loading...
