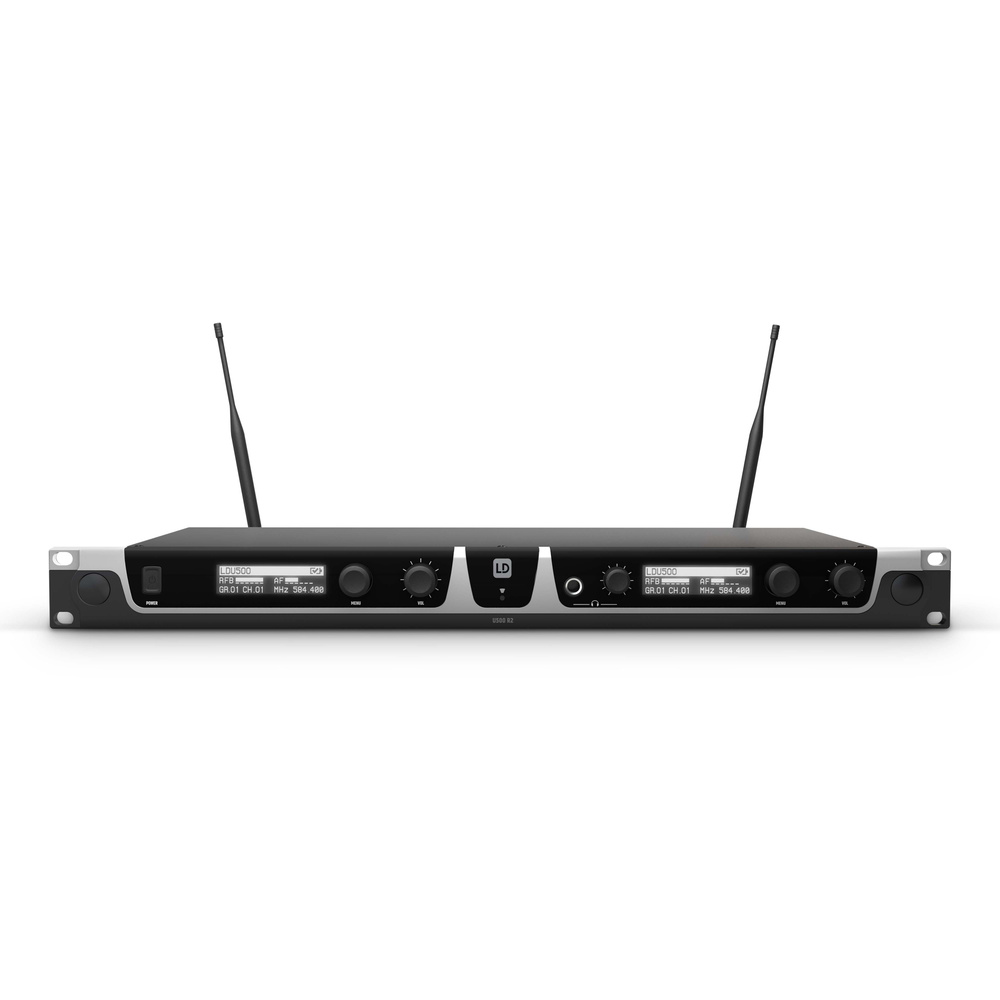

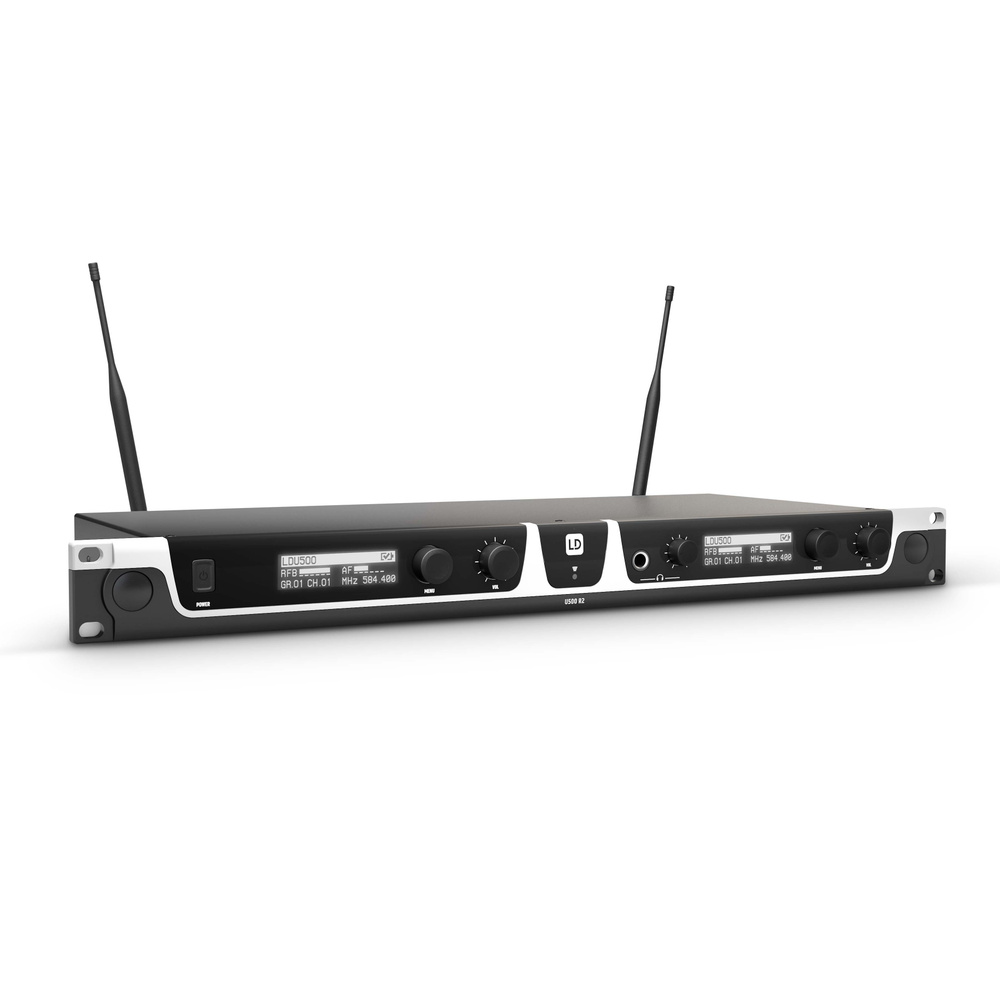

LD Systems
U508 R2

Dual receiver

U508 R2

RRP 10.204,70 CZK / piece

Item No.:
LDU508R2
EAN:
4049521203879
Guarantee:
24 Months
Unit:
piece
Series:
Versions:

We have developed the U500® Series and incorporated some of your suggestions to provide sophisticated and affordable wireless systems that are tailored to suit the needs of professional users. Whether for voice, instruments or as a wireless conference system, sets from the U500® Series will meet your expectations of quality sound, reliability and ease of operation.

With automatic channel scanning, convenient infrared synchronisation, intuitive menu navigation and an...

Read on
U508 R2
U508 R2
Dual receiver

RRP 10.204,70 CZK / piece

Specifications

Specifications

General
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Transmission frequency range
823 - 832 MHz, 863 - 865 MHz
Channels
2 x 96 (8 groups of 12 channels)
Groups
8

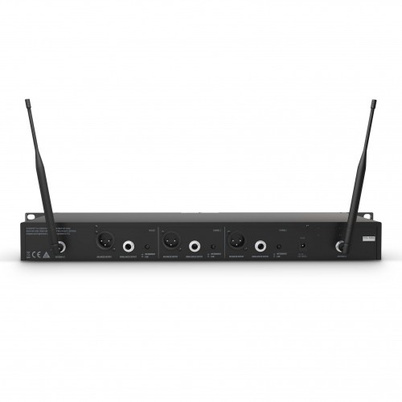

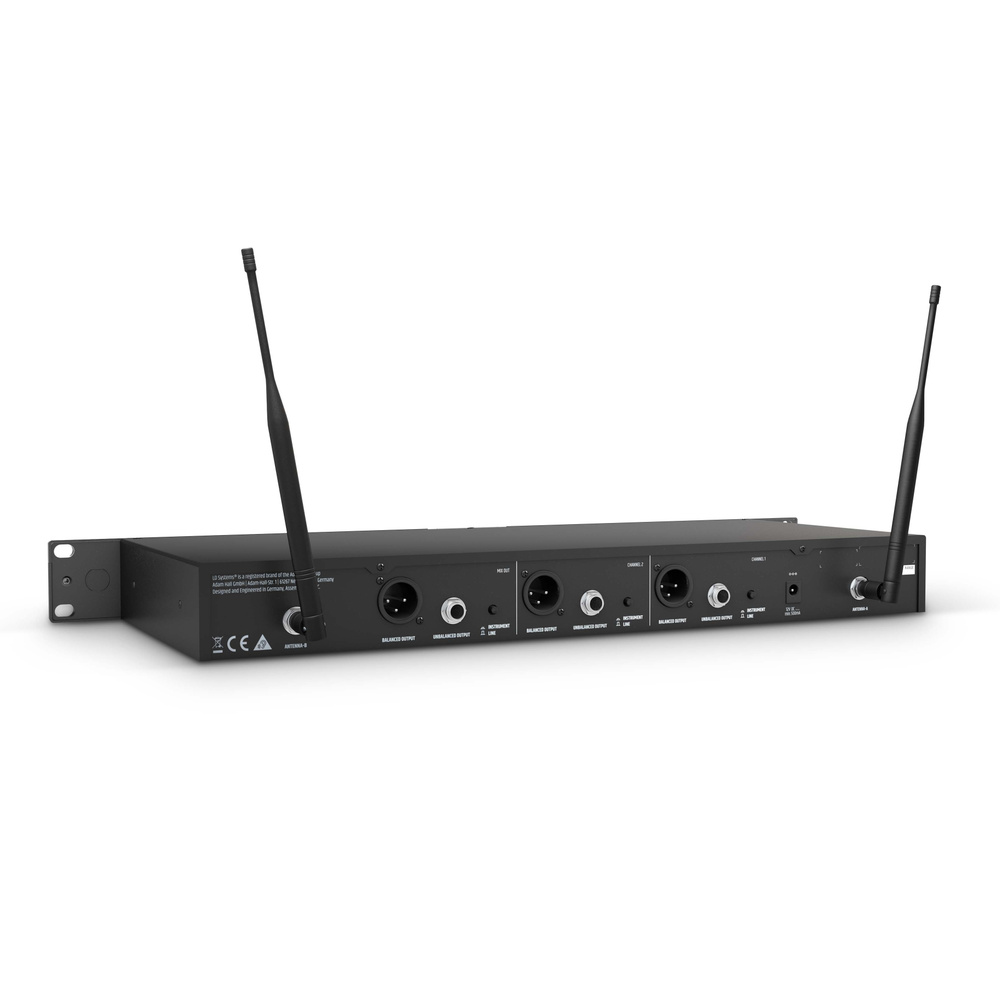

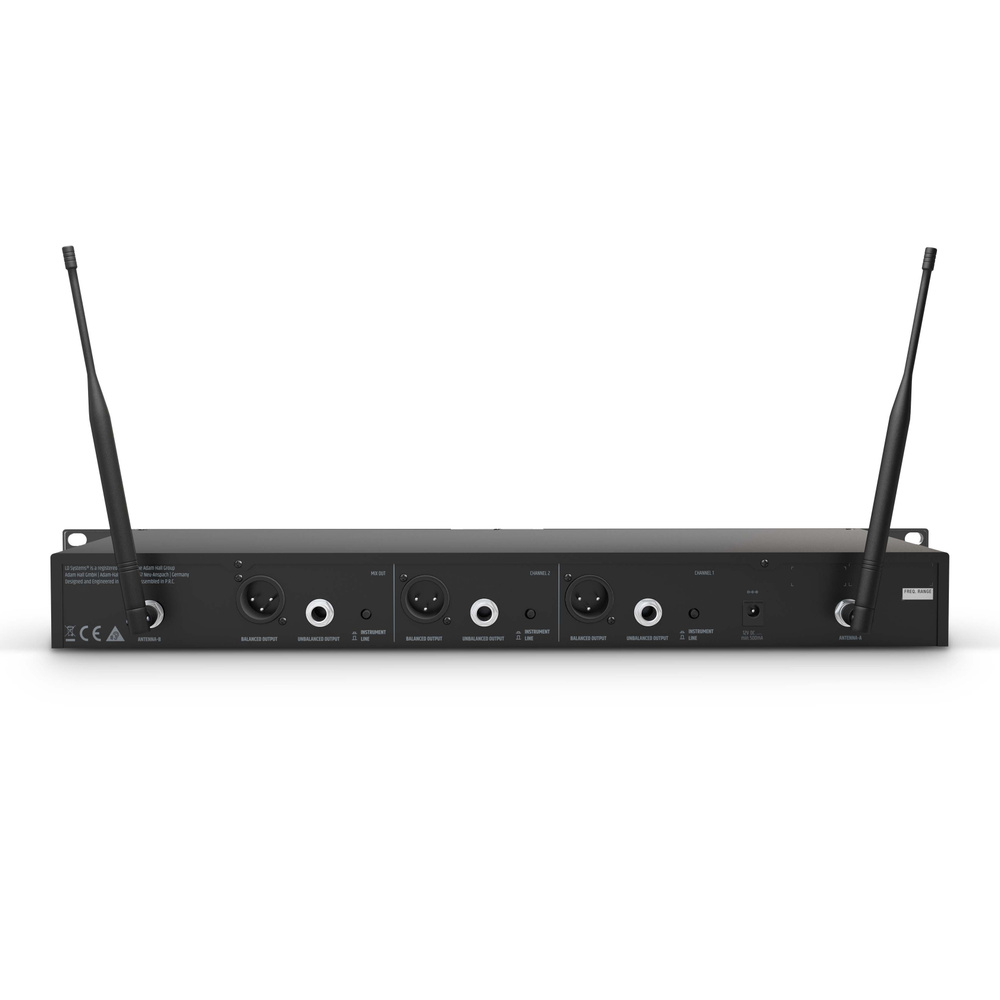

Antenna inputs
2
Antenna connector
BNC
Frequency response
30 - 16000 Hz
Noise reduction
Squelch
Total Harmonic Distortion (THD)
< 0.1 %
Signal-to-noise ratio
> 100 dB

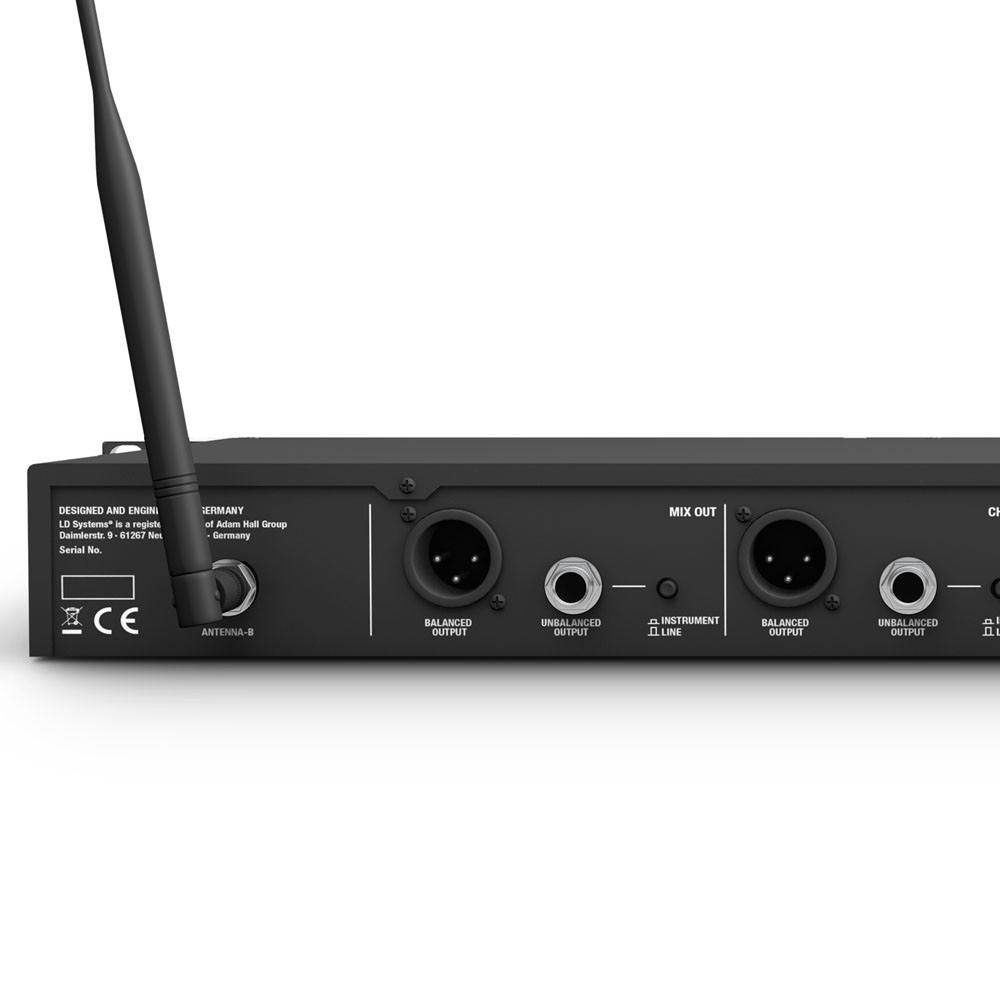

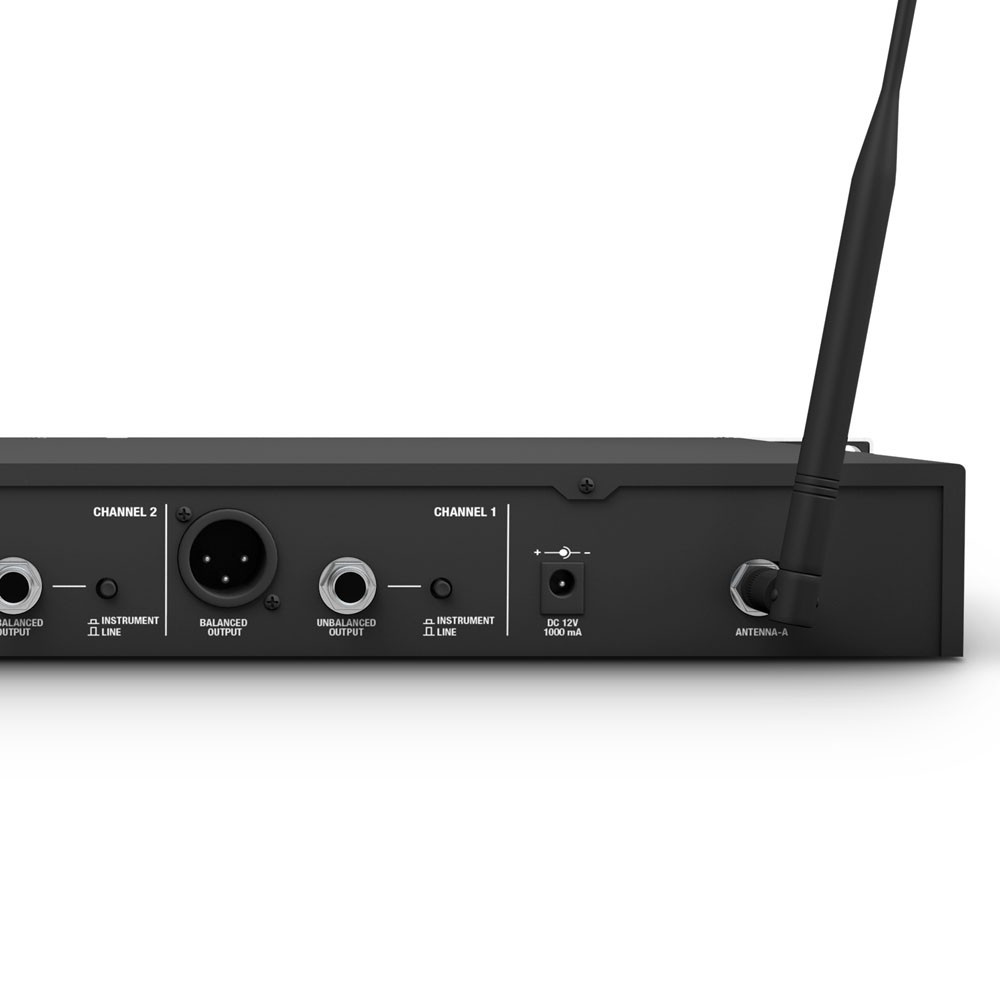

Audio output, balanced
2 x XLR
Audio output, unbalanced
2 x 6.3 mm TS
Audio mix output, balanced
XLR
Audio mix output, unbalanced
2 x 6.3 mm TS
Max. output level
+10 dBu
Headphones ouput
1
Headphones outputs
6.3 mm TRS
Controls
2 x volume, Down, Power On/Off, Up, volume
Indicators
2 x OLED Display
Operating voltage
12 V DC, 1000 mA
Width
484 mm
Height
44 mm
Depth
200 mm
Weight
2,24 kg
Accessories (included)
2 x antenna, Audio cable, power adapter, Rack kit
Other features
channel search function, IR frequency synchronisation, Pilot tone
